Industrial Submersible Electric Stainless Steel Flange Immersion Heater
Industrial Submersible Electric Stainless Steel Flange Immersion Heater
product description
Industrial Submersible Electric Stainless Steel Flange Immersion Heater are easy to form and feature highest mechanic stability and electric properties at the same time.
Even though Tubular heating element are technically rather mature and universal to use, there exist various new innovative solutions for many applications.
Screw in Tubular heating element are standardised for use in liquids like water.
Tubular heating element are easy to install,control and maintain, unique designer as your requirement. For corrosive enviroment, titanium material or tubular heating elements with additional teflon sleeving are available.
Specification
| 1. Name: immersion tubuar heater | |
| 2.Tube diameter: Φ6mm-Φ20mm |
|
| 3. Tube Material: SS201, SS304, SS316 and INCOLOY800 etc | |
| 4. Insulation Material: MgO | |
| 5. Conductor Material: Nichrome Resistance Wire | |
| 6. Wattage Density: High/Middle/Low (5-25w/cm2) | |

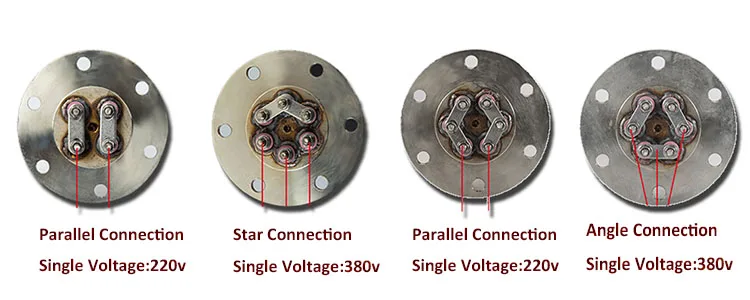

| 7. Lead Connection Option: Threaded Stud Terminal or Lead Wire | |
| 8.HI-POT Test: 1500V/S min cold condition | 9.Insulation resistance: 50M Ω min |
| 10.Leakage current: 0.5ma max | 11.Power tolerance:+5%,-10% |
Dear Customers:
Pls well noted our products are custom based on your requirements.
Pls inform us the detailed datas as attached for best quotation
We will send drawings to you for last confirmation and arrange the cost effective express delivery.
Material of 110v,220V screw plug immersion tubular heater for oil tank
|
Copper Sheath |
Water heating, water solutions non-corrosive to copper. |
|
Stainless stell sheath |
Immersion in oils, molten salt baths, alkaline cleaning solutions, tars and asphalt.Corrosive liquids, food processing equipment. Stainless steel 304 is the normalmaterial. |
|
Incoloy Sheath |
Air heating, radiant heating, cleaning and degreasing solutions, plating and pickling solutions, corrosive liquids. Usually for high temperature. |
|
Titanium tube |
corrosive environment. |
Application
1.Water Heating
2, Oil Heating
2.Air Heating
3.Heat Transfer Systems
4.Food Processing
5.Boiler Equipment
6.Parts Washing Tanks
